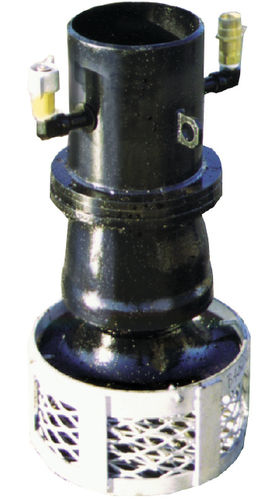

Water pump S8Mhydraulic motorsubmersiblecentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- hydraulic motor
- Priming
- submersible
- Technology
- centrifugal
- Mobility
- mobile, stationary
- Domain
- industrial
- Applications
- booster
- Other characteristics
- axial
- Flow
Min.: 0 us gal/min
(0 l/min)Max.: 18 us gal/min
(68.13741 l/min)- Pressure
Min.: 0 psi
Max.: 2,800 psi
- Head
Min.: 0'00"
(0 m)Max.: 59'00"
(17.98 m)- Fluid temperature
64 °C
(147.2 °F)- Weight
86 kg
(189.6 lb)
Description
The S8M offers a cost effective solution for pumping high volumes of water at low to medium heads. This pump is great for retention ponds, flood control, marine salvage and many other jobs that require quick and easy set-up.
Quick Specs
Discharge Size: 8 Inch
Maximum Flow: 2000 GPM (7600 LPM)
Maximum Head: 59 Feet
Hydraulic Input: 18 GPM (68 LPM) Max.
Hydraulic Pressure: 2800 PSI (190 Bar) Max.
Weight: 190 lbs. (86 Kg)
Key Features
High Volume Axial Flow design
High Efficiency mixed flow impeller
Small Overall Size allows for use in tight spaces
Variable Speed hydraulic drive
Oil Lubricated Seals (can run dry)
Dependable gear type hydraulic motor
Safe Hydraulic Drive can be used where electric power is hazardous or impractical
Operates with our HT20 to HT35 power units or other hydraulic power sources capable of flows to 18 GPM
