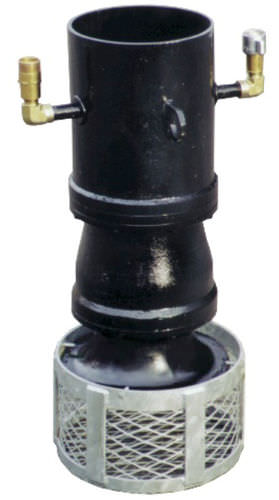

Water pump S12Mhydraulic motorsubmersibleimpeller
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- hydraulic motor
- Priming
- submersible
- Technology
- impeller
- Mobility
- mobile, stationary
- Domain
- industrial
- Applications
- drain
- Other characteristics
- axial
- Flow
Max.: 26 us gal/min
(98.42071 l/min)Min.: 0 us gal/min
(0 l/min)- Pressure
Max.: 2,900 psi
Min.: 0 psi
- Head
Max.: 52'00"
(15.85 m)Min.: 0'00"
(0 m)- Fluid temperature
64 °C
(147.2 °F)- Weight
174 kg
(383.6 lb)
Description
Weight - 385 lbs. (174 kg) -
Height - 41" (104 cm) -
Diameter - 27 1/2" (70 cm) -
Discharge - 12.75" O.D. Pipe or Flange -
Solid Handling - 1" (25 mm) -
Hose Ports - 1" NPT -
Pump Body - Cast Iron -
Impeller/Screw - Bronze -
Elastometers - Buna N (Std) -
Hydraulic Oil - 214-320 s.s.u. @ 100°F (64°C) -
Input Flow - Max 26 GPM (98 LPM) -
Operating Pressure - Max. 2900 PSI (197 Bar) -
Power Source - Any Open Center Hydraulic System
