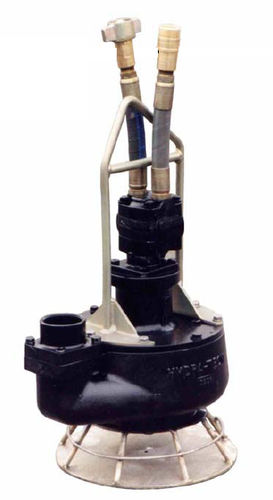

Vortex pump S3VHLslurryhydraulic motorsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- vortex
- Fluid
- slurry
- Operation
- hydraulic motor
- Priming
- submersible
- Mobility
- mobile, stationary
- Domain
- industrial
- Applications
- handling
- Flow
Max.: 18 us gal/min
(68.13741 l/min)Min.: 0 us gal/min
(0 l/min)- Pressure
Max.: 3,000 psi
Min.: 0 psi
- Head
Max.: 160'00"
(48.77 m)Min.: 0'00"
(0 m)- Fluid temperature
64 °C
(147.2 °F)- Weight
80 kg, 131 kg
(176.37 lb, 288.81 lb)
Description
Weight - Aluminum 176 lbs. (80 kg), Ductile Iron 289 lbs. (131 kg) -
Height - 33" (84 cm) -
Diameter - 19 3/4" (50 cm) -
Discharge - 3", NPT(F) -
Inlet Flange - Drilled for 3" and 4", 125# ASA -
Solid Handling - 3" (8 cm) -
Hose Ports - 1" (-16) SAE -
Pump Body - Heat Treated Aluminum, Ductile Iron -
Impeller/Screw - Stainless Steel -
Elastometers - Buna N (Std) -
Hydraulic Oil - 214-320 s.s.u. @ 100°F (64°C) -
Input Flow - Max 18 GPM (68 LPM) -
Operating Pressure - Max. 3000 PSI (204 Bar) -
Power Source - Any Open Center Hydraulic System
