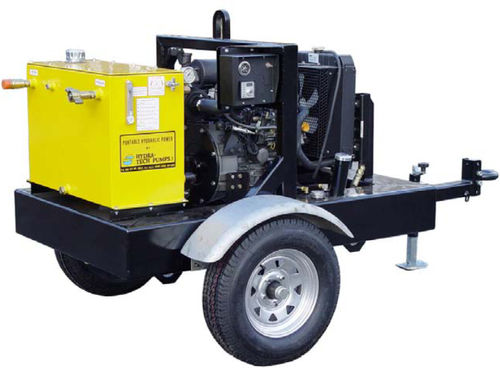

Diesel engine hydraulic power unit HT25DYSfor mobile machinesenginewheel-mounted
Add to favorites
Compare this product
Characteristics
- Power source
- diesel engine
- Applications
- for mobile machines, engine
- Other characteristics
- wheel-mounted
- Operating pressure
Min.: 0 psi
Max.: 2,500 psi
- Nominal power
16 kW
(21.8 hp)- Flow rate
Min.: 0 us gal/min
(0 l/min)Max.: 14 us gal/min
(53 l/min)- Tank capacity
114 l
(30.12 gal)
Description
Weight - 1245 lbs. (565 kg) -
Hydraulic Oil - SAE 10W or 20W Type AW (also: Dexron ATF or Biodegradable oil) -
Engine - Yanmar 3TNV88C Liquid Cooled Diesel (Tier 4 Final) -
Horse Power - 23.8 HP (16 KW) @ 3000 RPM -
Hydraulic Output - Variable, Max. 12 GPM (45 LPM) @ 2500 PSI -
Oil Filtration - 10 Micron (Standard) -
Oil Reservoir Capacity - 30 U.S. Gallons (114 Liters) -
Fuel Tank Capacity - 42 U.S. Gallons (159 Liters) -
Fuel Consumption - Approx. 2.0 U.S. Gal/Hr (7.5 Liters/Hr) -
Dimensions - H 55" (140 cm) x W 58" (147 cm) x L 105" (267 cm)
Catalogs
HT25DYS
2 Pages
