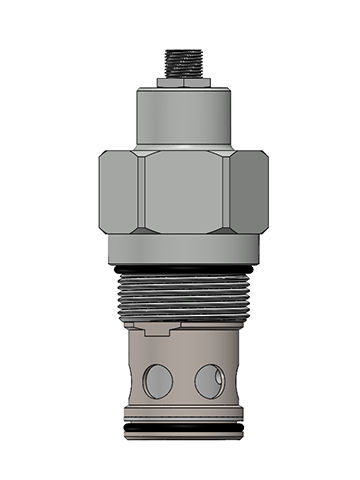

Compact relief valve RVM42-P0

screw-inhydraulicstandard

A screw-in, caridge-style, direct-acting, poppet-type hydraulic relief valve, designed for hydraulic cricuits with big flow rate and low pressure, which requiring low internal leakage and low pressure fluctuation with change of the flow rate. Operation The RVM42-P0 blocks flow from ①to② until sufficient pressure at ① is applied at ➀ to force the poppet from its seat. The RVM42-P0 responds fast to load changes in typical hydraulic circuits requiring low internal leakage. Features Fast and smooth response to pressure changes. The pressure fluctuation is low when the flow rate changes. Compact size. Adjustments cannot be backed out of the valve. Industry common cavity. Hardened poppet and cage for long life. Crack(set) pressure defined: Bar evident at 0.95 L/min attained Standard spring ranges: Factory default preset value: 50% of rated pressure Filtration：Max. nominal valve: 10um (NAS 8), ISO 4406 19/17/14 Fluid: Mineral based or synthetics with lubricating properties at viscosities of 7.4~420 cSt (50-2000 ssu) Installation: No restriction Cavity: VC42-2 Cavity tool: T/H42-2RC-T-G (Rough), T/H42-2FM-T-G (Finishing) Seat kit: SK42-2X -B
