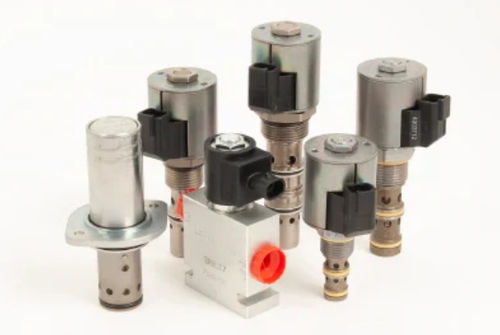

Cartridge valve FRRV10-41F

hydraulicadjustmentflow regulator

PRIORITY FLOW REGULATOR WITH BUILT-IN PRESSURE RELIEF VALVE U.S. PATENT No. 7,063,100 The FRRV10-41F is a screw-in, cartridge type, combination valve includes a pressure compensated, non adjustable priority type flow regulator and a pressure relief valve. The valve is intended for use with mineral based or synthetic hydraulic fluids with lubricating properties Operation It maintains a constant flow rate from port 3 regardless of load pressure changes at priority port 3, or bypass port 2 Features Two valve functions in one, industry-common cavity. Adjustments cannot be backed out of the valve. Relief valve adjustments prohibit relief valve spring from going solid. Quiet, modulated response. Hardened parts for long life. Materials Cartridge: Weight: 0.34 kg. (0.70 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces; Buna N O-rings and polyester elastomer back-ups standard. Anodized aluminum knobs and caps. Standard Ported Body: Weight: 0.36 kg. (0.80 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 207 bar (3000 psi); Ductile iron bodies available; dimensions may differ. For Pressure Adjustment option details,
