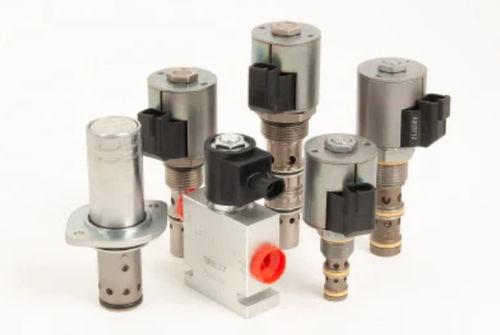

Cartridge valve SVPR98-G38

hydraulicflangecoil

PROPORTIONAL PRESSURE REDUCING / RELIEVING CARTRIDGE VALVE The SVPR98-G38X is a direct-acting, spool-type, fixed regulated pressure setting, pressure reducing relieving valve. It is a 3rd generation hydraforce drop-in, flange mounted cartridge type valve for use with mineral based or synthetic (with lubricating properties) hydraulic fluids. Operation The coil is an integral part of the valve and is not serviceable the valve blocks flow from port 1 to port 2 and allows flow from port 1 to port 3 when de-energized. When energized, the valve controls the pressure at port 1 to a fixed pressure setting. Inlet at port 2. Tank at port 3. Features Combines the functions of 3-way solenoid valve and pressure reducing/relieving valve into one space-saving cartridge Allows pressure regulation to be switched on/off Possible applications include brake function, 2-speed motor, differential lock, and more Four fixed pressure settings available (consult factory for other settings) G3 Drop-in style valve with integrated coil Coil options include two voltages and three connectors, with or without bidirectional Zener diode Flows up to 19 lpm (5 gpm) Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties. Fluid Viscosity Range: 7.4 to 420 cSt Unit Weight: 0.27 kg (0.60 lb) Internal Wetted Surface Area: 148 cm² (23.0 in²) Installation Type: Flange mounted Orientation Restriction: None Cavity: VC-G028 Mounting Screw Torque: 3 to 4 N-m (2.2 to 3.0 ft-lb)
