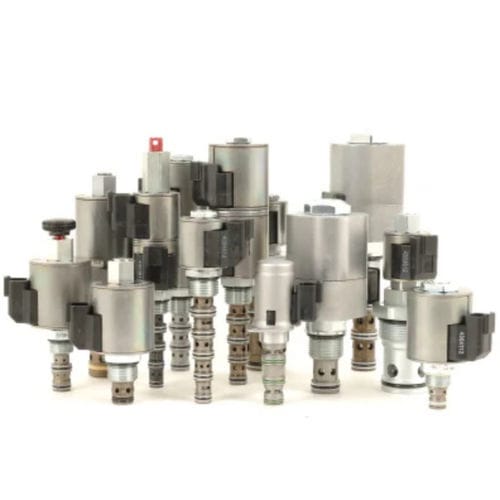

Direct-operated solenoid valve SF08-222-waynormally closedhydraulic
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- normally closed
- Medium
- hydraulic
- Body
- compact, seat, waterproof
- Other characteristics
- cartridge, corrosion-resistant, waterproof, bidirectional, load
- DN
57.2 mm
(2.252 in)- Temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)- Pressure
350 bar
(5,076.3 psi)
Description
NORMALLY CLOSED SOLENOID CARTRIDGE
This is a solenoid operated, poppet type, normally closed (energized: bidirectional flow) two way cartridge. It is intended for use in mineral based or synthetic (with lubricating properties) hydraulic fluids as a low leakage load holding valve.
Features
Continuous-duty rated coil.
Hardened seat for long life and low leakage.
Optional coil voltages and terminations.
Cartridges are voltage interchangeable.
Unitized, molded coil design.
Optional waterproof E-Coils rated up to IP69K.
Corrosion-resistant plating.
Industry common cavity.
Compact size.
Cavity:
08-size-2-way Cavities
