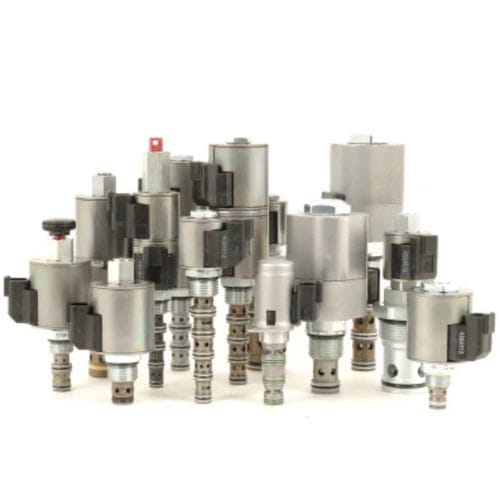

Direct-operated solenoid valve SF08-23

2-waynormally openhydraulic

SOLENOID VALVE POPPET, 2 WAY, NORMALLY OPEN Solenoid-operated, 2 way, normally open, poppet-type, screw in hydraulic cartridge valve, designed to function as a load holding or blocking valve in applications requiring low internal leakage at high pressure. When de-energized, the SF08-23 poppet lifts to open from port 2 to port 1. In this mode, flow is also allowed from port 1 to port 2. When energized, the cartridge acts as a check valve, blocking flow from port 2 to port 1 after overcoming the solenoid force (requires 50 to 150 psi [3,4 to 10,3 bar]). Features Continuous-duty rated coil. Hardened seat for long life and low leakage. Optional coil voltages and terminations. Cartridges are voltage interchangeable. Unitized, molded coil design. Manual override option. Optional waterproof E-Coils rated up to IP69K. Corrosion-resistant plating. Industry common, compact size. Materials: Steel with hardened work surfaces exposed surfaces plated per hf spec plt033 for 960 hours of salt spray per ASTM b117-09 before corrosion (red rust) Cavity: 08-size-2-way Cavities
