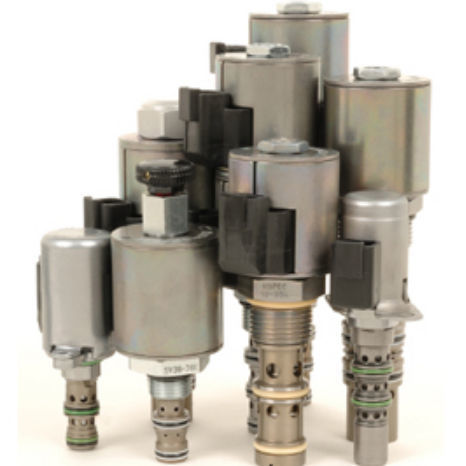

Direct-operated solenoid valve SP08-47C

4-wayhydraulicwaterproof

PROPORTIONAL SOLENOID CARTRIDGE VALVE 3 POSITION, 4 WAY, CLOSED CENTER SPOOL A solenoid operated, direct acting, 3 position, 4-way, closed center spool, proportional directional control. it is a screw in hydraulic cartridge valve for use with general purpose hydraulic fluids. manual override feature is available as an option. Operation When de-energized, the sp08-47cx blocks flow to all ports, when coil #1 is energized, flow is allowed from port 3 to port 4, and from port 2 to port 1. when coil #2 is energized, flow is allowed from port 3 to port 2, and from port 4 to port 1.t. Notes While port 1 may be fully pressurized, it is not intended for use as the valve's inlet. Features Continuous-duty rated solenoid. Hardened precision spool and cage for long life. Optional coil voltages and terminations. Manual override option. Optional waterproof E-Coils rated up to IP69K. Efficient wet-armature construction. Cartridges are voltage interchangeable. Good linearity and hysteresis. Industry-common cavity. Fluids Compatible Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 20/18/14 PER ISO 4406 Unit Weight: 0.16 kg (0.36 lb) SP08-47C 0.22 kg (0.48 lb) SP08-47CM 0.24 kg (0.53 lb) SP08-47CB Internal Wetted Surface Area: 161 cm² (25 in²) SP08-47C 187 cm² (29 in²) SP08-47CM/B Corrosion Protection: 960 hr salt spray per ASTM B117 Cavity: VC08-4 08-size-4-way Cavities Cartridge Installation Torque: 25.8 to 28.6 N-m (19 to 21 ft-lb) 54.2 N-m (40 ft-lb) Maximum allowable torque
