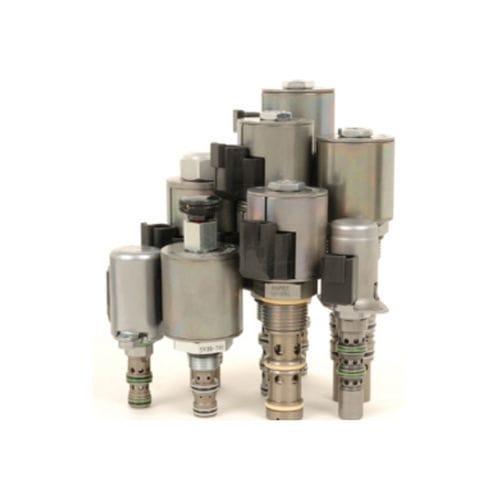

Direct-operated solenoid valve SP08-47CL

4-wayhydraulicwaterproof

PROPORTIONAL SOLENOID VALVE 3 POSITION, 4 WAY, CLOSED CENTER SPOOL A solenoid operated, direct acting, 3 position, 4-way, closed center spool, proportional directional control. It is a screw in hydraulic cartridge valve for use with general purpose hydraulic fluids. Manual override feature is available as an option. Operation When de-energized, the SP08-47C blocks flow to all ports, when coil #1 is energized, flow is allowed from port 3 to port 4, and from port 2 to port 1. When coil #2 is energized, flow is allowed from port 3 to port 2, and from port 4 to port 1. note: that while port 1 may be fully pressurized, it is not intended for use as the valve's inlet. Features Continuous-duty rated solenoid. Hardened precision spool and cage for long life. Optional coil voltages and terminations. Manual override option. Optional waterproof E-Coils rated up to IP69K. Efficient wet-armature construction. Cartridges are voltage interchangeable. Good linearity and hysteresis. Industry-common cavity. Maximum Operating Current: See chart Cavity: VC08-4 08-size-4-way Cavities Cartridge Installation Torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Coil Nut Torque: 5.4 to 6.8 N-m (4 to 5 ft-lb)
