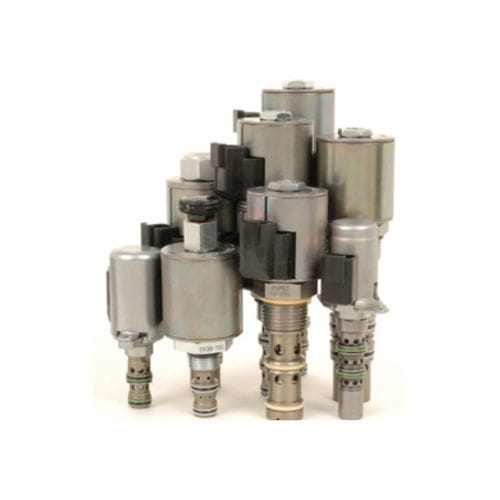

Direct-operated solenoid valve SP10-47C

4-waynormally closedhydraulic

SOLENOID PROPORTIONAL VALVE 3 POSITION, 4 PORT CLOSED CENTER A solenoid operated, direct acting, 3 position, 4-way, closed center spool, proportional directional control. It is a screw in hydraulic cartridge valve for use with general purpose hydraulic fluids. Manual override feature is available as an option. Operation When de-energized, the SP10-47CX blocks flow to all ports, when coil #1 is energized, flow is allowed from port 3 to port 4, and from port 2 to port 1. When coil #2 is energized, flow is allowed from port 3 to port 2, and from port 4 to port 1. note: that while port 1 may be fully pressurized, it is not intended for use as the valve's inlet. Features Continuous-duty rated solenoid. Hardened precision spool and cage for long life. Optional coil voltages and terminations. Manual override option. Optional waterproof E-Coils rated up to IP69K. Efficient wet-armature construction. Cartridges are voltage interchangeable. Good linearity and hysteresis. Industry-common cavity. Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 20/18/14 per ISO 4406 Valve Inductance: 198 mH At 1.2 A Maximum Control Current: Threshhold Current: Dither PWM Frequency: 100 Hz Cavity: VC10-4 10-size-4-way Cavities Cartridge Installation Torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil Nut Torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation Restriction: None
