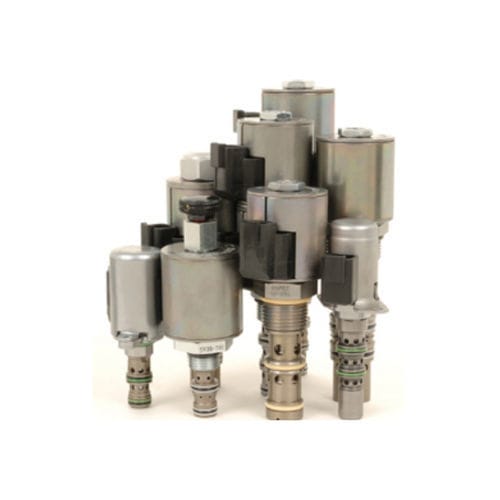

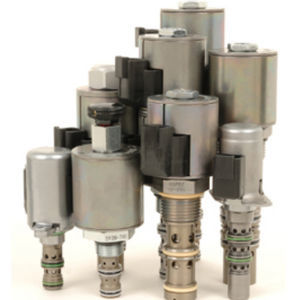

Direct-operated solenoid valve SP08-47DN

4-wayhydraulicscrew-in

A solenoid operated, direct acting, 3 position, 4-way, motor spool,proportional directional control. It is a screw-in hydraulic cartridge valve for use with general purpose hydraulic fluids. Manual override feature is available as an option. Operation When de-energized,the sp08-47dnx blocks flow at port 3, while allowing flow from port 2 to port 1 and port 4 to port 1. When coil S1 is energized, flow is allowed from port 3 to port 4, and from port 2 to port 1. When coil S2 is energized, flow is allowed from port 3 to port 2, and from port 4 to port 1. NOTE: While port 1 may be fully pressurized, it is not intended for use as the valve's inlet. Features Exra low flow option Continuous-duty rated solenoid. Hardened precision spool and cage for long life. Optional coil voltages and terminations. Manual override option. Optional waterproof E-Coils rated up to IP69K. Efficient wet-armature construction. Cartridges are voltage interchangeable. Industry-common cavity. Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties. Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 20/18/14 per ISO 4406 Unit Weight: 0.16 kg (0.36 lb) Internal Wetted Surface Area: 159 cm² (24.7 in²) Maximum Control Current: 1.0 A 12 V coil Threshold Current: See performance graphs Dither PWM Frequency: 90 to 110 Hz Cavity: VC08-4 08-size-4-way Cavities Cartridge Installation Torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Coil Nut Torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation Restriction: None
