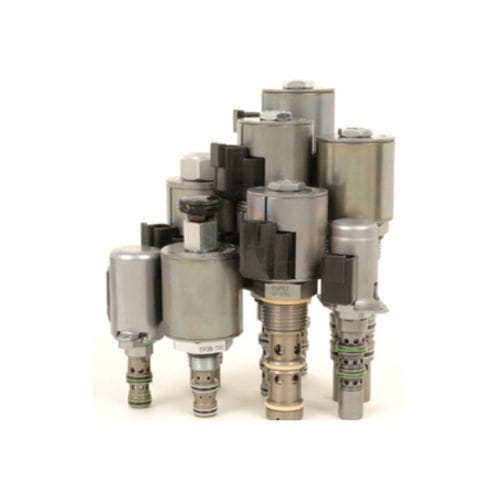

Cartridge flow divider FD50-44

4-wayhydraulic

The FD50-44 is a screw-in cartridge, spool type flow divider/combiner valve. Operation The valve provides pressure compensated proportional division of inlet flow or combining of two return flows regardless of system operating pressure conditions. The valve is intended for use in mineral based or synthetic hydraulic fluids with lubricating properties. Features Choice of flow ranges. Quiet, modulated response. Wide operating flow range. Accurate division or combination of flow. Optional corrosion-resistant plating. Industry-common cavity. Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 18/16/13 per ISO 4406 Unit Weight: 0.11 kg (0.25 lb) Internal Wetted Surface Area: 164 cm² (25.4 in²) Cavity: VC10-4 10-size-4-way Cavities Cartridge Installation Torque: 65 to 71 N-m (48 to 52 ft-lb) Orientation Restriction: None
