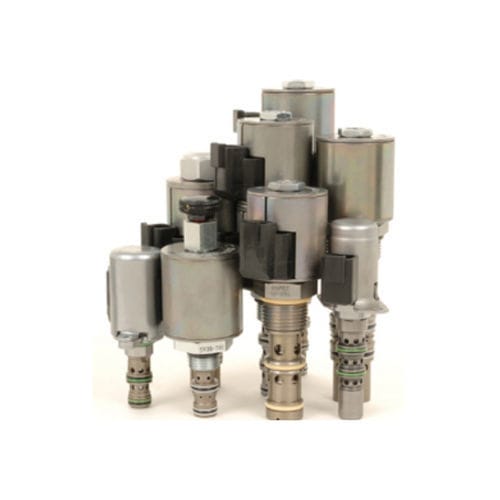

Screw flow divider FD52-45

4-wayhydraulic

The FD52-45 is a screw-in cartridge, spool type flow divider/combiner valve. Operation The cartridge valve pressure compensated proportional division of inlet flow or combining of two return flows regardless of system operating pressure conditions. The valve provides synchronizing flow in dividing and combining modes. Features Hardened parts for long life. Quiet, modulated response. Wide operating flow range. Synchronizing in dividing and combining modes. Floating cage — high installation torque. Industry-common cavity. Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 18/16/13 per ISO 4406 Unit Weight: 0.24 kg (0.53 lb) Internal Wetted Surface Area: 238 cm² (43.8 in²) Cavity: VC12-4 12-size-4-way Cavities Cartridge Installation Torque: 99 to 104 N-m (73 to 77 ft-lb) 156 to 169 N-m (115 to 125 ft-lb) For applications with pressure excursions up to applications Orientation Restriction: None
