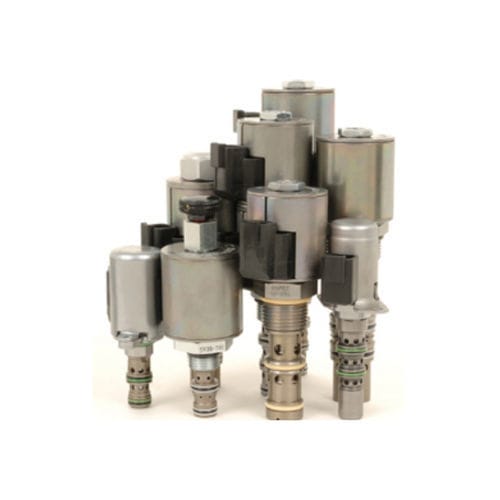

Volumetric flow regulator FR04-20F

hydrauliccompact

FR04-20F is a screw-in, cartridge style, fixed orifice, pressure compensated, hydraulic flow regulator valve (restrictive type). Operation The valve maintains a constant flow rate from port 1 to port 2 regardless of load pressure changes. Reverse flow returns through the control orifice and is non-compensated. Features Choice of several flow settings available. Hardened parts for long life. Quiet, modulated response. Compact size. Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 18/16/13 per ISO 4406 Unit Weight: 0.03 kg (0.06 lb) Internal Wetted Surface Area: 21.0 cm² (3.26 in²) Cavity: VC04-2 04-size-2-way Cavities Cartridge Installation Torque: 16 to 19 N-m (12 to 14 ft-lb) Maximum Allowable Torque: 27 N-m (20 ft-lb) Maximum allowable torque Orientation Restriction: None
