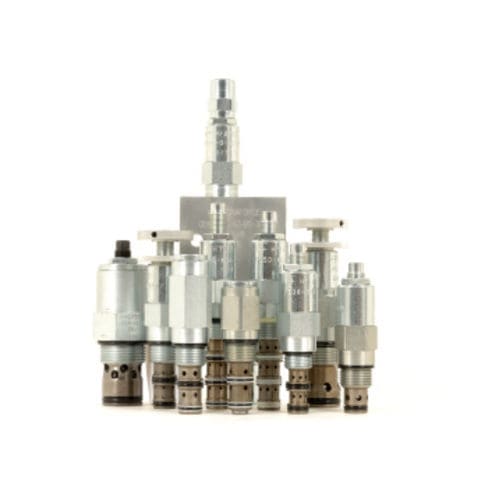

Hydraulic relief valve CR08-28

direct-operatedplugdifferential

The CR08-28X is a screw in, cartridge style, direct acting, differential area, poppet type, internally vented, bidirectional hydraulic relief valve intended for use as a pressure limiting device for common hydraulic circuit protection. Operation The CR08-28X blocks flow from either port 1 or port 2. on attainment of a predetermined pressure at either port 1 or port 2, the spring-opposed poppet is forced from its seat. The cartridge offers fast response to load changes in typical hydraulic circuits requiring low hysteresis, low pressure rise and low internal leakage. Features Range of adjustment options Corrosion-protection of 960 hours salt spray per ASTM B117. Hardened parts for long life. Industry common cavity. luids: Mineral based or synthetic with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 18/16/13 per ISO 4406 Cavity: VC08-2 08-size-2-way Cavities Cartridge Installation Torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) H Style Plug Torque: 32.5 to 35.2 N-m (24 to 26 ft-lb) Orientation Restriction: None
