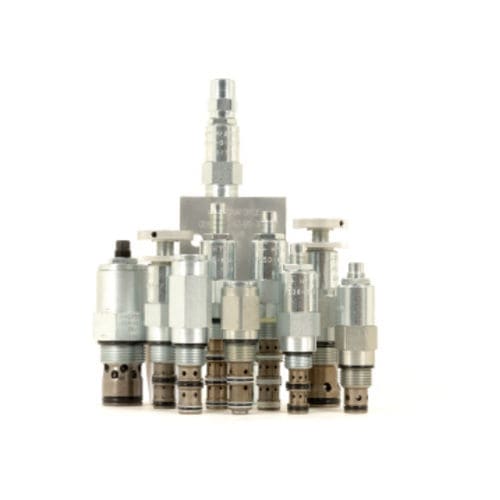

Compact relief valve CR08-38

hydraulicplugcartridge

CR08-38X is a screw-in, cartridge style, direct acting, bi-directional, poppet type hydraulic relief valve for use as a pressure limiting device in more demanding hydraulic circuits, requiring low hysteresis and low internal leakage. Operation The valve blocks flow from port 1 to port 2 bi-directionaly with the spring chamber constantly drained at port 3. On attainment of a pre-determined pressure at either port 1 or port 2, the spring-opposed poppet is forced from its seat. Features Adjustments cannot be backed out of the valve. Adjustments prohibit springs from going solid. Hardened parts for long life. Compact, industry-common size. Fluids: Mineral based or synthetic with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 18/16/13 per ISO 4406 Cavity: VC08-3 08-size-3-way Cavities Cartridge Installation Torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) 47.5 N-m (35 ft-lb) Up to maximum of H Style Plug Torque: 33.9.8 to 36.6 N-m (25 to 27 ft-lb) Orientation Restriction: None
