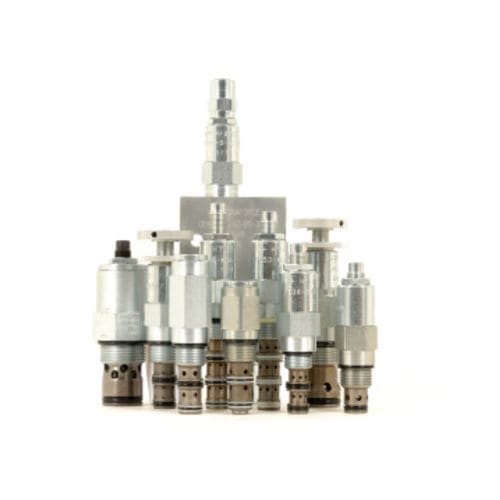

Compact relief valve RV58-20

hydraulicplugcartridge

RV58-20X is a screw-in, cartridge style, direct acting, poppet type, hydraulic relief valve intended for lower flow circuits, requiring low internal leakage. Operation The RV58-20X blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to force the spring opposed poppet from its seat. Features Rated for higher operating pressure of 345 bar (5000 psi). Bi-directional pressure option available. Adjustments cannot be backed out of the valve. Adjustments prohibit springs from going solid. Variety of adjustment options available. Rapid response to pressure changes. Compact size. Notes Supersession: Existing and new applications. RVD58-20 Is our best-in-class relief valve and can functionally replace this valve in most applications. We strongly encourage you to consider this newer alternative. Considerations:. Comparable pressure and flow ratings Comparable response rate Better pressure rise characteristics Smaller size No dynamic seal Competitive cost VC08-2B cavity variation is required. Some manifolds may allow drop-in replacement. Assistance is available to evaluate your application Fluids: Mineral based or synthetic with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Maximum Operating Contamination Level: 18/16/13 per ISO 4406 Cavity: VC08-2 08-size-2-way Cavities Cartridge Installation Torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Maximum Allowable Torque: 40.7 N-m (30 ft-lb) H Style Plug Torque: 10.8 to 13.6 N-m (8 to 10 ft-lb) N V P U 31 to 34 N-m (23 to 25 ft-lb) PC Orientation Restriction: None
