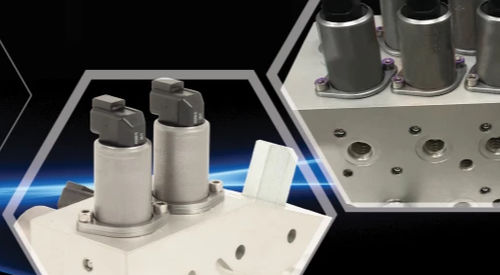

Cartridge valve EHPR98-G33

hydraulicpressure-controlflange

The EHPR98-G33XX is a direct-acting, spool-type, proportional, pressure reducing relieving valve. It is a 3rd generation HydraForce drop-in, flange mounted cartridge type valve for use with mineral based or synthetic (with lubricating properties) hydraulic fluids. The coil is an integral part of the valve and is not serviceable the regulated pressure is proportional to the input electrical current in the pressure ranges shown. Features Economical drop-in style Mounting plate option. Compact size Retrofit option to replace EHPR98-T33 Quick response time Inlet screen and pressure options Top-mounted connector Low leakage Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid Viscosity Range: 7.4 to 420 cSt Cavity: VC-G027 Standard configuration Drop-in cavities Installation Type: Flange mounted Orientation Restriction: None Mounting Screw Torque: 3 to 4 N-m (2.2 to 3.0 ft-lb) For standard VC-G027 Cavity 1.2 to 1.5 N-m (0.9 to 1.1 ft-lb) For retrofit VC-T009 Cavity Note: For retro-fitting into older drop-in cavities and other mounting options, see "Mounting-options-for-G3-valves" technical reference Mounting options for G3 Valves
