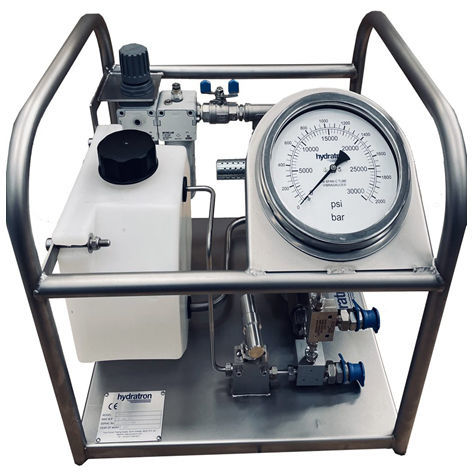

Hydraulic bolt tensioner HyBTP-1-275

subsea

The Hydratron bolt tensioner pump provides high pressure to hydraulic tensioner tools for the simultaneous tightening of multiple bolts; the tools are connected in sequence via a high-pressure hose assembly to the tensioner pump. This ensures no leakage occurs at flanged pipe joints during operating conditions. Specifications Pump start/stop valveStainless steel tubingAZ-1-275 hydraulic pumpDual outlet 1/4″ QRC nipplesPressure release valve6″ pressure gauge7.5 litre plastic tankStainless steel roll bar frameAir filter/regulatorAir lubricator Options High flow subsea tensioning2000bar performanceATEX complianceCustomer designs built to meet specific customer needs HyBTP-1-275 Bolt Tensioner Pump Our cost-effective bolt tensioner pumps are robust, compact and lightweight, as well as featuring easy to use controls. HyBTP-1-275 Key Features: Hydratron air operated hydrostatic test pump Air line relief valve to protect tensioning tool from over pressurisation Dual outlet connections to ensure equal load across tensioning tools 6″ pressure gauge Pressure release valve All low and high pressure pipework in stainless steel CE conformity
