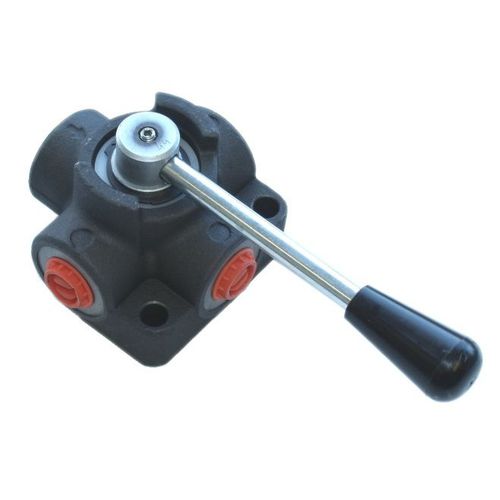

Rotary hydraulic directional control valve DV6040

lever-operated

G1/2 (BSP) 4 Port Diverter Valve - 90 lpm 250 bar The Hy-Pro range of G1/2 diverter valves are available in three or four ported versions. The three ported valves can be used to control a single acting cylinder or as a two way diverter to switch pump flow. The four ported valves can be used to control the movements of cylinders and motors or as a three way diverter. These selector valves offer a cost effective way of adding additional services to a circuit without the need for extra directional control valves. They are designed for the rugged environments of mobile and agricultural applications. The cast iron three ported valves, with their chromed steel spools, can either control the movement of a single acting cylinder or switch pump flow as a two way diverter. The cast iron four ported valves, with their chromed steel spools, can be used to control motors and cylinders or used as a three way diverter valve. Designed to be used in many applications requiring a rugged, reliable diverter valve. Accepted in the industrial, agricultural and mobile markets where there are open and closed centre options to suit the application
