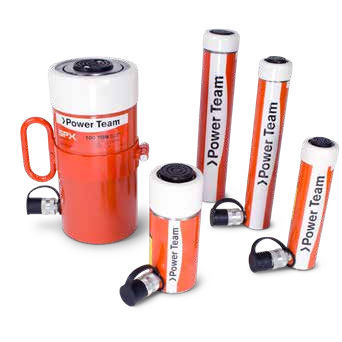

Hydraulic cylinder C seriespistonsingle-actingsteel
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- single-acting
- Material
- steel, aluminum
- Protection class
- rugged
- Applications
- for lifting applications, for presses
- Other characteristics
- standard, corrosion-resistant, wear-resistant
- Stroke
Max.: 16 in
Min.: 1 in
- Bore
Max.: 5.13 in
Min.: 1.13 in
- Force
Max.: 100 tf
Min.: 5 tf
Description
■ Aluminum bronze bearing reduces wear caused by off-center loads.
■ Maximum sized springs speed piston return and increase spring life.
■ Collar threads are standard on all C-Series models, simplifying fixturing applications.
■ Removable rubber boots protect collar threads during transport and storage.
■ Solid steel cylinder body for durability.
■ Chrome plated piston rod resists wear and corrosion.
■ Wide range of accessories available that mount onto the piston rod, collar, or base.
■ A 3/8" NPTF female half coupler is standard.
■ Complies with ANSI / ASME B30.1 Safety Standards.
