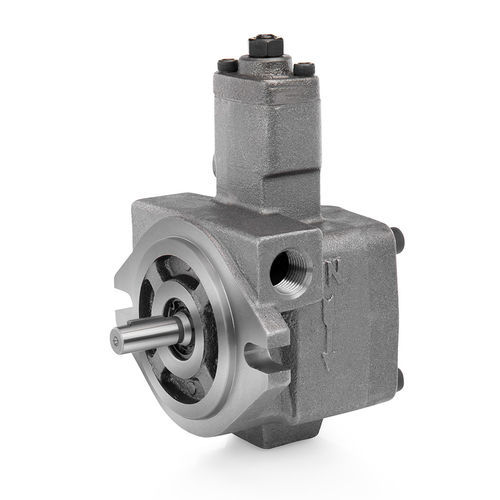

Hydraulic rotary vane pump VPV serieselectrically-poweredfor industrial applicationsfor hydraulic powerpacks
Add to favorites
Compare this product
Characteristics
- Type
- rotary vane
- Operation
- electrically-powered
- Applications
- for industrial applications, for hydraulic powerpacks
- Other characteristics
- variable-displacement
- Pressure
Min.: 20 bar
(290 psi)Max.: 70 bar
(1,015 psi)- Flow rate
Min.: 8 l/min
(2.11 us gal/min)Max.: 40 l/min
(10.57 us gal/min)- Speed
Min.: 100 rpm
(628 rad.min-1)Max.: 1,800 rpm
(11,310 rad.min-1)- Power
Min.: 0.8 kW
(1.09 hp)Max.: 3.8 kW
(5.17 hp)
Description
Vane pumps VPV series and hollow shaft electric motor
VPV series of Hydraut are variable displacement low pressure vane pumps with mechanical pressure adjustment device.
Electric motors in various sizes with hollow shaft for direct coupling available.
Warranty 24 months.
Catalogs
No catalogs are available for this product.
