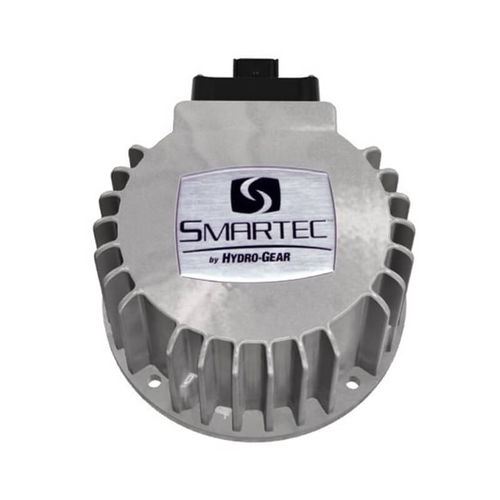

DC motor brushless48 Vsealed
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 48 V
- Protection class
- sealed
- Other characteristics
- with integrated controller, programmable
- Torque
3.1 ft.lb, 4.16 ft.lb
- Rotational speed
2,800 rpm
(17,592.92 rad.min-1)- Diameter
6.92 in
Description
DESCRIPTION
The deck system created by the SMARTEC® team utilizes two brushless DC motors with enough power to cut the densest grass. It is powered by two controllers packaged within a single, sealed housing to provide heat dissipation and protection from the elements.
FEATURES
•Programmable start and stop times
•Advanced system protection
•Quiet operation
Work Function System
Controllers :1
Motors: 2
Motor Package Size
Height (Total):6.33 in [160.78 mm]
Height (Above mount surface):3.98 in [101.09 mm]
Diameter :6.92 in [175.77 mm]
Motor Shaft Diameter - :1 in [25.4 mm]
Controller Package Size
Height :3.745 in [95.1 mm]
Width :9.80 in [248.9 mm]
Length: 8.41 in [213.6 mm]
System Voltage:48 VDC
Nominal Battery Voltage
Maximum:55 VDC
Minimum:42 VDC
