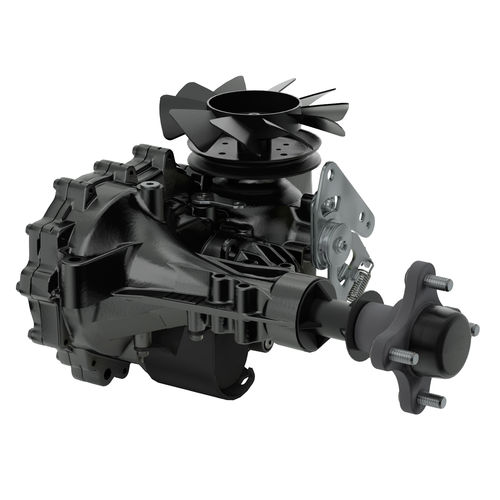

Transaxle ZT-3600™

DESCRIPTION Delivering up to 500 ft/lbs of output torque, the ZT-3600™ was designed for premium vehicles—where tough commercial applications demand durable, long-lasting equipment. FEATURES •Designed with an all steel drive train •Enhanced rotating kit for optimal performance •Larger charge pump for added capability Transmission Model:ZX Overall Transaxle Reduction:23.16:1 Pump Displacement:0.73 in3 /rev [12 cc/rev] Motor Displacement:0.97 in3 /rev [16 cc/rev] Input Speeds Max Hi-Idle (no load):3600 rpm Min (loaded):1800 rpm - Output Torque: up to 500 lb-ft [up to 677 Nm] Speed: up to 10 mph [up to 16 kph] Gross Vehicle Weight: up to 1600 lbs [725 kg] Axle Shaft Diameter: 1.125 in [28.56 mm] Axle Shaft End Options: Tapered 4-bolt Flange 5-bolt Flange Weight of Unit:34.5 lbs [15.6 kg]
