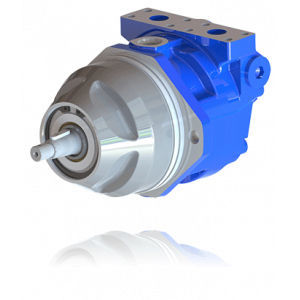

Fixed-displacement hydraulic motor MT45 spherical pistoncompact
Add to favorites
Compare this product
Characteristics
- Technology
- spherical piston
- Other characteristics
- fixed-displacement, compact
- Pressure
280 bar, 300 bar
(4,061 psi, 4,351 psi)- Rotational speed
4,000 rpm, 4,200 rpm
(25,132.74 rad.min-1, 26,389.38 rad.min-1)- Torque
200 Nm
(147.51 ft.lb)- Displacement
45 cm³
(1.52 US fl oz)
Description
The MT 45 is an in-line piston motor.
Its « semi-integrated » design makes it very compact.
Equipped with a conical keyed shaft, it is optimal for mounting on fan drive.
On request, the MT 45 motor can be fitted with an anti-cavitation valve, and with an integrated pressure relief valves, thus further reducing size envelope of the function.
Characteristics and advantages :
dual direction of rotation,
available options : anti-cavitation valve + integrated pressure limiter (different settings on request),
semi-integrated – ISO.
Applications :
fan drive,
construction machinery and equipment,
agricultural machinery.
Catalogs
MT45 series motors
2 Pages
