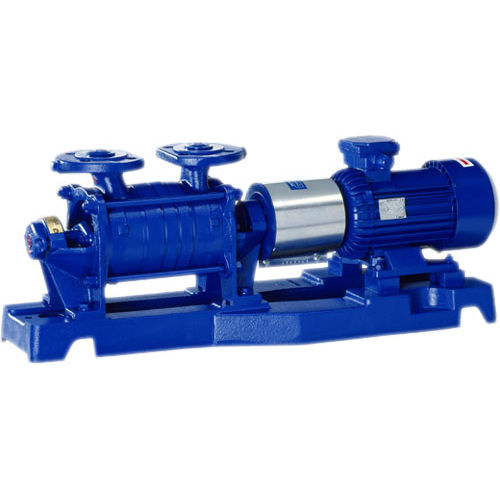

Impeller pump SKA series

waterwith electric motorself-priming

Applications SKA self-priming rotodynamic, pumps with side ring channel and open impeller, serve to pump liquids within the corrosion resistance limits of materials used for their construction. Liquids of a temperature up to 110oC, discharged liquid density up to 1 300 kg/m3 and viscosity up to 150 mm2/s contaminated with solid particles up to 0.5 mm in trace amounts can be pumped. Pumps can cooperate with 50 Hz or 60 Hz motors. SKA pumps can be used in: waterwork systems, , individual farms, industry. Technical specifications capacity0,3 ÷ 30 m3/h delivery headup to 310 m * pumped liquid temperatureup to 110 oC liquid densityup to 1300 kg/m3 liquid viscosityup to 150 mm2/s mass34,0 ÷ 409,0 kg motor power0,55 ÷ 30,0 kW rotation speed1450 obr/min (50 Hz) and 1800 obr/min (60 Hz) rotations directionclockwise, looking on the pumps from drive side shaft sealcord seal or end-face seal manometric pressure allowed for SKA.2 pumps cannot exceed 2.5 MPa, for the remaining 1 to 4 stage pumps, manometric pressure cannot exceed 2.0 MPa and for 5 to 8 stage pumps - 3.2 MPa, for 1 to 4 stage pumps with an oval flange the allowed pressure cannot exceed 0.8 MPa.
