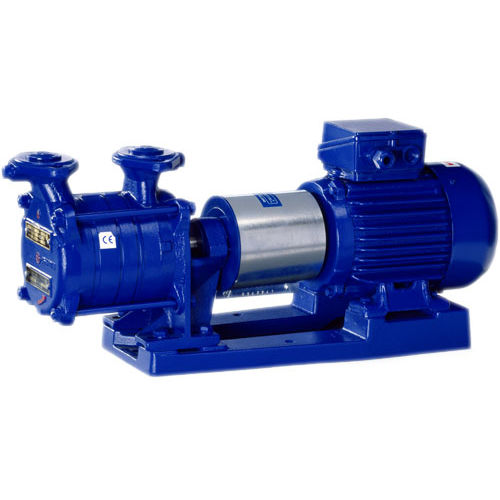

Water pump SKB series
with electric motorself-primingimpeller

water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
with electric motor
Priming
self-priming
Technology
impeller
Domain
industrial
Applications
replacement, discharge
Other characteristics
suction, transportable, with open impeller
Flow

Min.: 0.3 m³/h
(10.5944 ft³/h)

Max.: 4.5 m³/h
(158.916 ft³/h)

Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145.038 psi)

Head

Min.: 0 m
(0'00" )

Max.: 72 m
(236'02" )

Power

Min.: 0.25 kW
(0.34 hp)

Max.: 2.2 kW
(2.99 hp)

Description

Applications Self-priming rotodynamic, pumps with side ring channel and open impeller, designed for pumping liquids within the corrosion resistance limits of materials used for their construction. Their greatest advantage is the self-priming feature, with suction pipe priming not necessary. The pump gains its self-priming feature after prior priming with liquid. Pumps can operate in transportable equipment and with 50 Hz to 60 Hz motors. SKB pumps can be used in: waterwork systems, individual farms, industry. Design SKB pumps consist of bearing housing , shaft and suction housing in which shaft seals ale installed, as well as of suction, suction-discharge and discharge members, impellers and discharge housing with slide bearing. Features: many years of reliable operation and easy access to replacement parts guaranteed, execution of individual requirements and products adjusted to customer's needs, permanent technical supervision as well as guarantee and post-guarantee service, low procurement and operation costs, relatively long life in difficult operational conditions.
