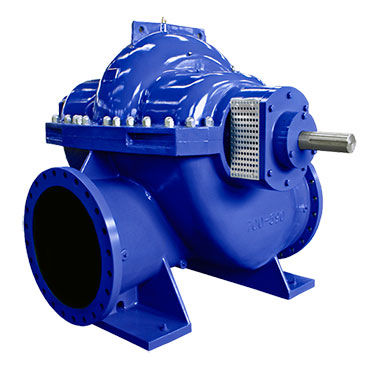

Water pump DHV series

hydraulic motorcentrifugalindustrial

Applications DHV pumps should be applied for pumping of clean or slightly contaminated liquids with low viscosity and temperature up to 120oC. The main applications are: water supply, water treatment stations, irrigation systems, water heating and water cooling systems, industrial water systems, fire fighting systems, power plants, seawater pumping systems. Features Pumps type DHV are characterized by high rigidity of hydraulic system thanks to supporting of the shaft from its both sides. Due to central location of impeller on the shaft and sucking of water by the impeller from its both sides, the axial forces In the pump have been reduced to the minimum what allows for simple pump bearing and elongates its life considerably. Pump casing, divided in two halves (upper and bottom) allows for very convenient and easy inspection and reapairs of hydraulic system, after removing of the upper half. Pumps are characterized by high efficiencies and low operation costs. Due to big number of pump types and their very wide operation range, optimum selection of pumps for set operation parameters is possible.
