High-purity hydrogen generation unit HySTAT™60

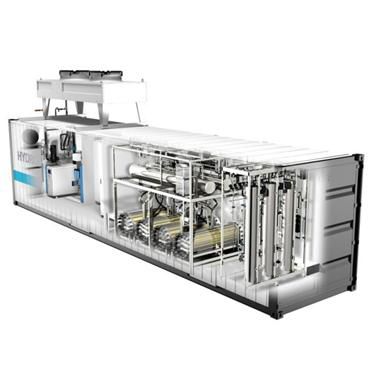

A HySTAT™60 outdoor unit is installed in a 40ft housing, greatly simplifying implementation at customer’s site. It is a turnkey solution including a hydrogen generating unit with one of our proprietary IMET® cell stack, a control panel with HMI and two power racks with controlled AC/DC conversion and all the needed peripherals (according to customer’s requirements) to produce hydrogen in a safe and reliable way. The maximum working pressure can be selected to be 10 barg and the gas purity can be up to 99.999%. With safety and reliability as key priority, every HySTAT™ features: -PROFIsafe protocol ensuring a safe shut down in case of control failure (PLC) -Fail safe logic for all parameters and inherent safe design (passive safety) -Uninterruptible Power Supply (UPS) ensuring a safe shutdown in case of power failure -Constant monitoring of gas purity (HTO) -Minimal gas presence in the system (only few Nm3 at full production) -Multiple redundancy on critical safety parameters. The HySTAT™ H2 production is continuously monitored and rapidly adjusted to meet any actual user requirements. Every system is offered together with startup and commissioning at your site and with a training to provide your operator with the required knowledge to run the system. The HySTAT™ can be equipped with a variety of options.
