Hydraulic cylinder 200-5

pistoncylinderdouble-acting

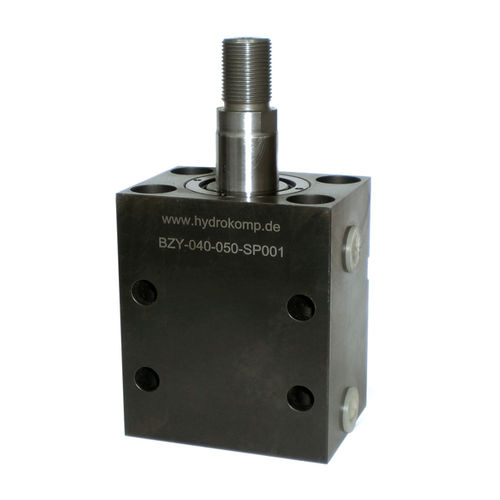

Where linear movements are hydraulically created and exact strokes are essential, this double-acting block cylinder is ideal for application. Block cylinders are typically used in plant engineering, moldmaking, general mechanical engineering, fixture construction and toolmaking. The compact cubic design and the transverse groove make assembly easy and guarantee service under high operating pressure. HYDROKOMP offers various versions of oil supply. Apart from the double sealing at the rod diameter, block cylinders are equipped with an additional metal wiper. The metal wiper prevents ingress of metallic filings into the soft wiper and ensures continuous operation with little leakage. The piston rods of the block cylinders have an external thread. This enables mounting of joint heads for example and other fastening elements. As standard, HYDROKOMP offers the block cylinder in five sizes. Special designs and other strokes are available. Special features: ideal for continuous operation with little leakage allows exact strokes 4 mounting options metal wiper as standard external thread for accessories eg. joint heads standard cylinders and special design available The image shows a block cylinder with external threaded piston together with accessories joint head and bearing support. The bearing support is supplied with 4 cylinder head screws and mounted to the cylinder through bleeder bores. Operating pressure: pmax. 500 bar Operating method: double-acting Piston Ø: 25, 32, 40, 50 and 63 mm Stroke: 50 and 63 mm Thrust force: from 4,9 kN at 100 bar up to 156 kN at 500 bar
