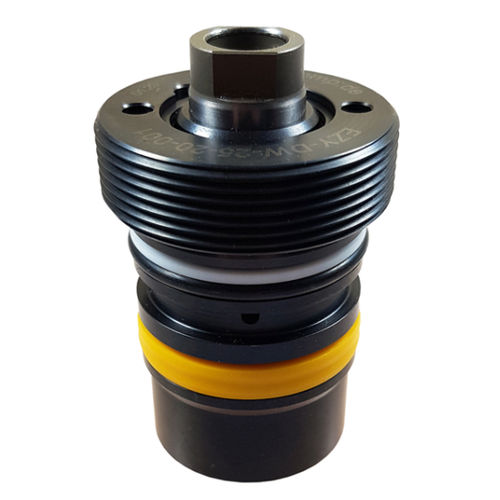

Piston cylinder 200-2

compactpositioningthreaded body

Threaded body cylinders, double-acting This cylinder with double acting function saves space when built into fixture plates or into plates of plastic injection moulds. The double acting function makes cycledependant strokes possible when retracting and extending the piston. The operation times can be calculated from the possible flow rate of the power unit and the operated piston or ring area volume. Unlike with single acting cylinders both stroke directions are power operated. On the piston rod end the cylinders are equipped with a retractable wiper made of NBR/FKM and an additional metal wiper. The metal wiper prevents the penetration of chips into the soft wiper and in this way the piston is prevented from jamming. This preventive measure protects the seals and increases the life of the cylinder. Special features: no ingress of chips due integrated metal wiper space-saving positioning possible fully retractable housing oil supply without pipe varied for manifold application options standard cylinders and special designs available on request Operating conditions: Oil is fed to the inside of the fixture body by means of drilled oilways. Meticulous cleanliness is extremely important since drilling chips may damage the seals and cause leakage and the failure of the installation. The cylinder is sealed by means of an O-ring / support ring combination. Due to the compact design the threaded body cylinder does not have an internal stop for the return stroke, but uses the bore bottom of the assembly bore.
