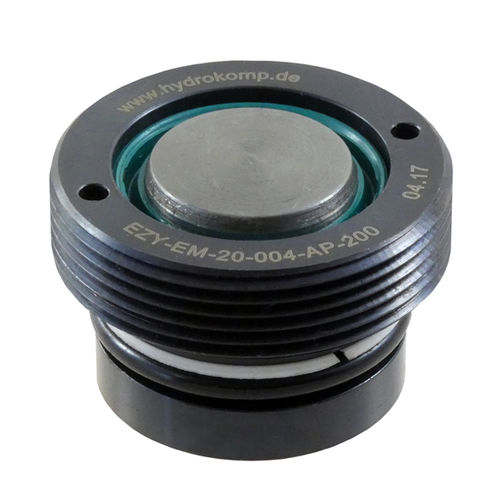

Hydraulic cylinder 210-1

pistonsingle-actingclamping

Threaded body cylinders, with stroke limiter These threaded body cylinders are a space saving solution as clamping and lock cylinders. Suitable as a construction module for a wide variety of tasks. This cylinder is for example also ideally suited for press clamping devices. The cylinder distinguishes by its compact construction. Due to the internal stroke limiter, the cylinder can also be operated without counter clamping. The piston rod end is crowned. The threaded body cylinder operates hydraulically only single-acting. As a result, only definite extraction times are given. The reset is effected by means of a built-in compression spring. For that reason, the reset time cannot be precisely determined. Hydraulic oil is supplied through drilled channels. After the cylinder has been installed, it is to be secured in the thread M45x1.5 by means of a threaded pin M4x6. The scope of supply includes this threaded pin with internal hexagon and chamfer point. Special features: suitable as clamping cylinder and as lock cylinder usable without counter clamping surface with internal stroke limiter with large spherical piston surface without or with soft wiper available standard cylinders and special designs available Hydraulic quick-acting clamping fixture A hydraulic quick-acting clamping fixture with 12 threaded body cylinders. This is clamped onto a standardized clamping edge thickness of 20 mm. The clamping bars are supplied by a dual-circuit hydraulic clamping system. This means that in the event of a pressure drop in one clamping circuit, the clamping effect is maintained by the second clamping circuit until the machine stops.
