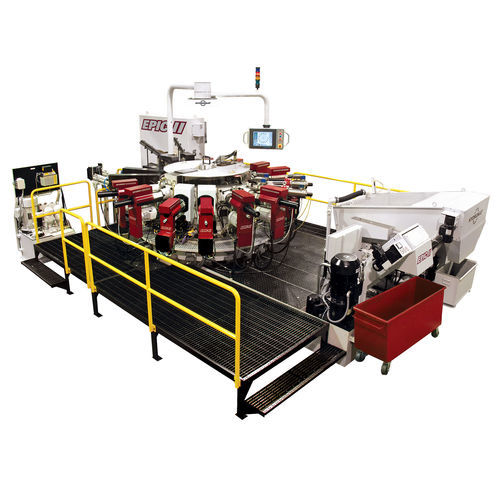

Rotary transfer machine EPIC II

CNC6-position12-position

he EPIC II Indexing Chuck machine combines precision chucks with the indexing accuracy and reliability of the Hirth ring. Available in 12 or 16 station models, the indexing chuck machine is fully integrated into the Hydromat program, so the same modular components used with Hydromat’s popular EPIC R/T models are compatible with the EPIC Indexing Chuck models. This system is ideal for the mid to high-volume, precision production of irregular-shaped castings or forgings and is designed with the flexibility to easily accommodate families of parts. Features Handles blanks up to a 4" cube Extreme accuracy and reliability of a Hirth ring Several different unit sizes available Multiple Loading and Chip Systems options Plug & play EPIC programming for on the fly changes Every machine sold is individually engineered for optimal cycle time Improved Accuracy with Absolute Positioning Which Eliminates Need for Unit Home Prox Replacement Servo Valves Can Be Locally Configured and Programmed On the Machine And Does Not Require Hydromat Assistance Expanded Canned Cycle Selections to Generate Programs Faster and Easier Enhanced Operation, Trouble Shooting, and PM Intervals More Standard CNC Controls for Improved Part Set-Up, Change-Overs, and Process-Tooling Development Integrated Tool Monitoring EPIC II Control Benefits No PMAC EPIC Boxes Bosch CNC/PLC Common Control Direct Access for Valves, Programming, & Feedback Standardized Common Servo Valve Reduced Wiring and Machine Plugs Efficient Architecture with Reduced Failure Points Additional Machine Set-Up Options Loading Options Chip Systems Units Coolant Chiller Tooling
