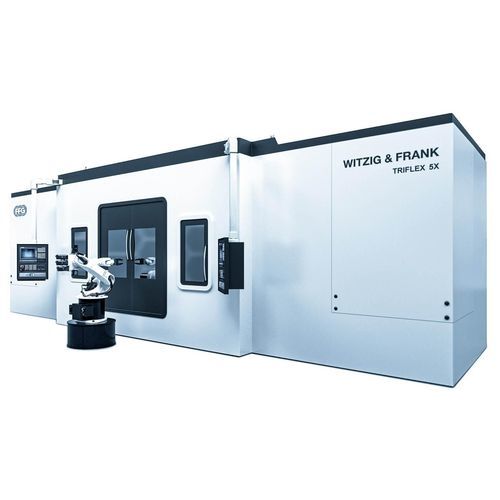

5-axis CNC machining center TriFlex 5Xhorizontalwith rotary table2-spindle
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- horizontal
- Structure
- with rotary table
- Number of spindles
- 2-spindle
- Spindle mount
- HSK F63
- Number of tool stations
- 8 tools
- Other characteristics
- precision, automated loading/unloading, with turret
- X travel
450 mm
(17.72 in)- Y travel
500 mm
(19.69 in)- Z travel
450 mm
(17.72 in)- Rotational speed
80 rpm
(503 rad.min-1)- Work feed X-axis
50 m/min
- Work feed Y-axis
50 m/min
- Work feed Z-axis
60 m/min
- Table load capacity
250 kg
(551 lb)- Weight
65 t
(71.65 us ton)- Overall length
10,400 mm
(409.4 in)- Overall width
10,200 mm
(401.6 in)- Overall height
4,200 mm
(165.4 in)
Description
The TriFlex 5X with its horizontal workstation setup allows precise machining jobs with the highest output just-in-time. The newly designed machine is based on the original TRIFLEX concept developed in the early 2000s and enhances its strengths by adding features of current single and dual spindle machining centers.
Complete Machining
Mass Production
Single Machine
Five Sided Machining
Five Stations
Single Setup
Features
Loading & Unloading Station
Central Rotating Unit for Workpiece Transfer
6x A/B - Axis with Torque Drive for Fully Flexible 5-Axis Machining
CNC Control: FANUC 31i
