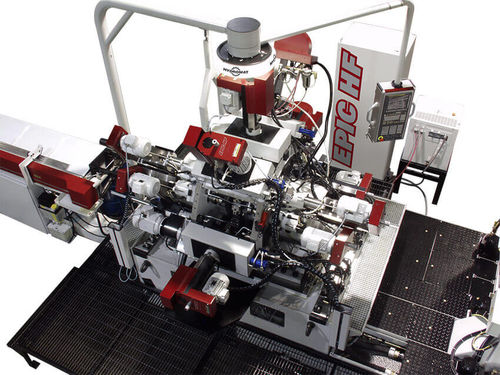

Rotary transfer machine EPIC HF

CNC8-position12-position

The Hydromat EPIC HF FANUC line of rotary transfer machines can be equipped with collets or chucks for precision metal cutting. This exceptional design is a modular system consisting of horizontal and vertical toolspindles mounted around a precision cast base.The EPIC HF machines possess all of the general characteristics of the more conventional Hydromat machines and maintains the integrity, reliability and flexibility of its predecessors. Applying CNC technology to the manufacture of precision parts is generally accepted as a premium that one must pay for the advantages over conventional actuation systems. All machines use the FANUC 30i-B as a controller option. A control known, used, and trusted industry-wide by many best-in-class machine manufacturers. The EPIC HF FANUC rotary transfer machines come in two models: the V8 and V12. These EPIC HF models are equipped with the FANUC 30i-MODEL B control. These modular machines provide tremendous versatility and flexibility in a turnkey system. The Trunnion machines are equipped with 8 (V8 machine) or 12 (V12 machine) chucks. These hydraulically actuated, self-centering chuck jaws keep the workpiece stationary while the table indexes to each machining position. Features Fanuc G-code programming – most widely-used control language in the world. Uses standard, affordable induction motors for most common operations. Hydromat HMI software provides max. ease-of-use & reliability. Vector spindle drives located in air-conditioned electrical cabinet. Keyboard attached to pendant, doesn’t need charging. No plugs on command or feedback cables - Mil-Spec. connectors. No valve programming. No junction boxes attached to spindle.
