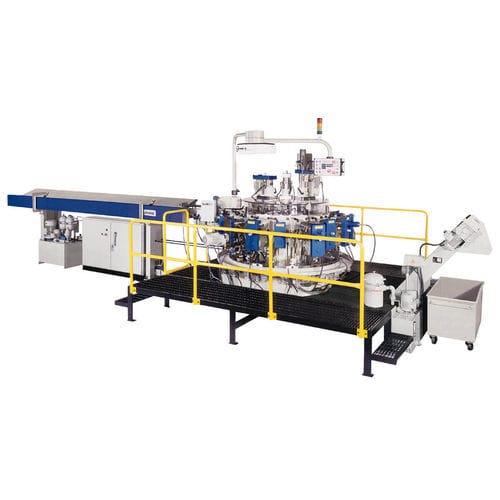

Rotary transfer machine HB 32/45-16
NC8-position16-position

rotary transfer machine
rotary transfer machine
rotary transfer machine
rotary transfer machine
rotary transfer machine
rotary transfer machine
rotary transfer machine
Add to favorites
Compare this product


Characteristics

Type
rotary
Control type
NC
Number of positions
8-position, 16-position
Other characteristics
high-accuracy, horizontal-axis, vertical-axis

Description

The HB 32/45-16 rotary transfer machine is a modular system consisting of up to 16 horizontal and 8 vertical toolspindle units rigidly mounted around a precision cast-iron ring. This arrangement has the capability of providing tremendous versatility and flexibility in a turn-key machining solution. With 1-3/4" capacity, the HB 32/45-16 machine is ideally suited to produce parts from bar stock or blanks up to 6" in length. Consistent high production & precise machining, combined with the elimination of costly secondary operations make the HB 32/45-16 machine an outstanding solution for cost-effective manufacturing. Features Eliminates secondary operations Several different unit sizes available Coolant chiller optional Multiple loading and chip system options Hydromat Advantages Over Conventional Machining Eliminates secondary operations Extremely short remnants and thin cutoff for significant material saving Reduces work in progress Increased productivity due to bar change and quick changeover capabilities Non-rotating bar stock provides quiet vibration free operation Modular toolspindles with quick-change presettable heads for easy changeovers Easily adapted for vertical machining requirements - up to 6 stations Easily accessible operating controls and machine adjustments Coolant and chips contained in the tooling area away from motors and controls Precision table indexing and repeatability ensures accuracy with SPC to 2.0 CpK Inverting unit repositions part for complete end to end machining
