Rotary transfer machine Force

CNC6-position8-position

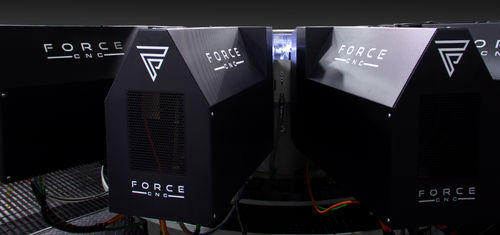

The Hydromat Force CNC Rotary Transfer Machine line of rotary transfer machines can be equipped with collets or chucks for precision metal cutting. This exceptional design is a modular system consisting of horizontal and vertical toolspindles mounted around a precision cast base. This state-of-theart machine is a ballscrew electromechanical system that offers modularity with options for 1 through 4 axis configurations: providing drilling, tapping, threading, thread milling, single point threading, profiling, and milling capabilities. All machines use the FANUC 30i-B as a controller option. A control known, used, and trusted industry-wide by many best-in-class machine manufacturers. FORCE CNC machines utilize 12 or 16 horizontal machining stations and have the available capacity of six vertical tool spindles on a 12-station machine and eight vertical tool spindles on a 16-station machine. Fully Electromechanical Machine with Ballscrew Drive Technology and Direct Drives Standard Machine Equipped Force 50/150 Tool Spindle Units Available in 1, 2, 3, & 4 Axis Configurations. Machining Capabilities: Drilling, Tapping, Threading, Thread Milling, Single Point Threading, Profiling, and Milling Capabilities Maximum Spindle Speed: Mill / Drill Units 8,500 RPM and Lathe Turning 5000 RPM Maximum Stock Size that Ranges up to 1.75 Inch Round, 1.5 Inch Hex, 1.25 Inch Square, and a Part Length to 6 Inches Designed, Engineered, and Assembled by Hydromat OEM Experts and FANUC Authorized Integrator
