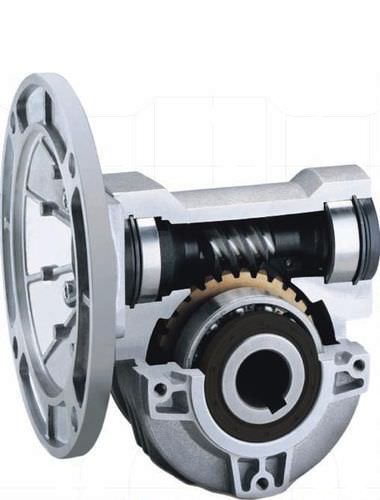

Worm gear reducer

right angleprecisionhigh-speed

A modular and compact product Single-piece aluminum alloy housing Is vacuum impregnated (MIL-STD 276) for protection and sealing. No secondary finish required but readily accepts paint. Combines light weight with high tensile strength. Precision machined for alignment of bearings and gearing. Single piece alloy steel input shaft and worm shaft. High helix angle worm is case-hardened (Rc 58-60), ground, teeth are profiled and radiused, for noise reduction and enhanced efficiency. Oversized bearings Support positively-retained, high speed shaft for higher shock load capacity - ideal for frequent starting and reversing application. Premium, Nitrile® high temperature seals each end. Flange Fully modular to IEC and compact integrated motor. NEMA C flange. Premium, high temperature Nitrile® output seals Bronze alloy worm gears. Is centrifugally cast onto an iron hub for maximum strenght and superior life. Standard hollow output shaft mounting Reduces total drive envelope size, weight and cost. Single and double solid output shaft is available. Impregnated and machined bearing caps With exterior machined surfaces enable a variety of mounting accessories. Extra-deep thread engagement provided for greater support strength. Zinc plated hardware.
