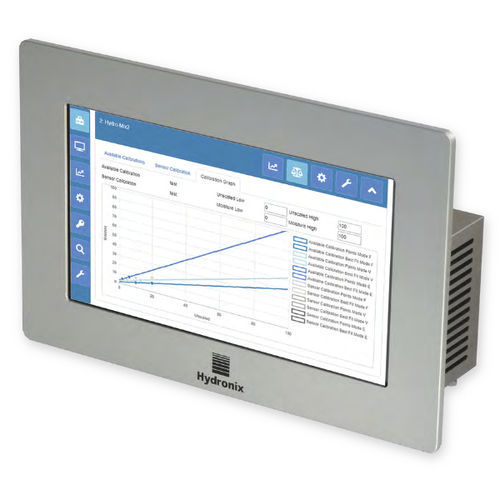

LCD screen Hydro-View V

touch screen10.1"1024 x 600

The Hydro-View provides a simple interface to view Hydronix sensor data in addition to sensor configuration, diagnostics, calibration and data collection. The Hydro-View can be used either as a stand alone unit for recording sensor data or integrated into a control system. The Hydro-View connects a network of up to 16 Hydronix sensors with multiple systems simultaneously. Connections can be made using TCP/IP, existing RS485 networks implementing the Hydro-Link Protocol or through the Fieldbus option. The Hydro-View has a 10.1” touch screen for local configuration and viewing and features a built in web server with a web API for machine data requests. Its web browser interface gives it the flexibility to be used with tablets and PCs when a remote connection is required. For systems that have already implemented the Hydro-Link protocol, the Hydro-View adds the full functionality of Hydro-Com software via the web browser interface. Features • 10.1” touchscreen • Easy to install in new or existing systems • Simple to integrate into Hydronix networks • Live display to view measurements of up to 6 sensors • Communicates with up to 16 sensors • Ethernet Port with web browser interface / Web API • Calibrate Hydronix sensors • Log sensor data via USB • Live sensor diagnostics • Sensor configuration • Optional - Fieldbus connection • Optional - Calibration selection using digital inputs The Hydro-View is a computer-based moisture display system that provides the user with the additional ability to calibrate and configure Hydronix sensors.
