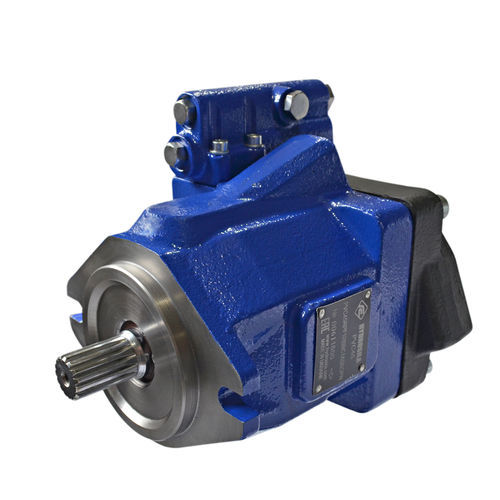

Hydraulic axial piston pump PVC1 series

open circuitcompactlow-noise level

- Low pressure pump for hydraulic systems with open circuit - Displacement 28…85 ccm - Large selection of control types - Possibility of tandem according to SAE Variable pumps PVC1 series are designed for hydraulic systems of mobile equipment. Low power consumption, wide range of controls and configurations make them ideal for a wide range of mobile machines. Application: - Agricultural tractors - Agricultural machines - Fan Drives A compact and reliable design, a low power consumption and a wide range of controls and configurations make them an ideal solution for low pressure hydraulic systems. Perfect for agricultural tractors and Fan Drive. Characteristics: - Swashplate design. - High volumetric efficiency. - Smooth operation over the entire speed range. - Tapered roller bearings enable the pump shaft to withstand high radial and axial loads. - Bimetal control valve has a high wear-resistance. - Mechanical mounting of the part-turn bearings ensures reliable swash plate turning mechanism. - Mounting flanges according to SAE. - Possibility of tandem according to SAE. Control systems: - pressure controller - pressure and flow controller Х-Т open - pressure and flow controller Х-Т closed - pressure control remotely operated - electrical pressure controller 12/24В
