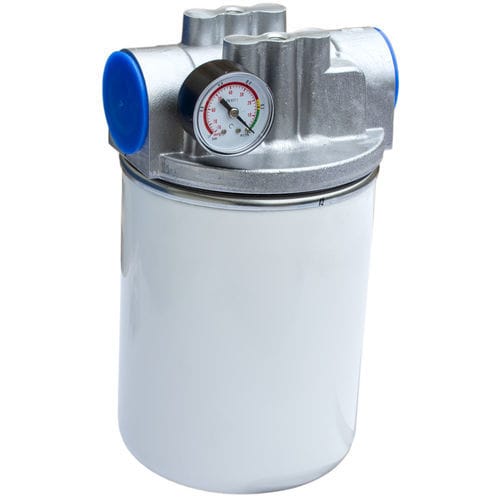

Suction filter FS10hydraulicbasketvacuum
Add to favorites
Compare this product
Characteristics
- Designed for
- hydraulic
- Filtration element
- basket
- Filtration method
- vacuum
- Applications
- suction, for pump, for pipelines
- Material
- aluminum
- Other characteristics
- bypass
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 12 bar
(174.045 psi)- Filtration size
10 µm
- Flow
53 l/min
(14.001 us gal/min)- Fluid temperature
Min.: -25 °C
(-13 °F)Max.: 110 °C
(230 °F)
Description
- Filter element connection according to ISO or ANSI
- Clogging indicator - vacuum gauge
- Bypass valve optional
Suction filters FS10 are designed for installation in the suction pipelines of pumps. Installation outside the hydraulic tank allows for easy filter element replacement.
Suction filters FS10 are designed for installation in the suction pipelines of pumps, outside the hydraulic tank. This makes it easy to change the filter element. Use any mineral oils for hydraulic systems with viscosity 20-2000 mm2/s at a temperature of 50 °C.
Connection ti pipeline: М36х2-6Н or G 1 1/4 ISO228.
Filter element connection: G 1 1/4 ISO228 or 1 1/2х16UN-2B ANSI B1.1
Clogging indicator connection: Rp 1/8
Clogging indicator - vacuum gauge.
Bypass valve optional.
Standard filter element SOFIMA CCA301CD1 or WIX 51858.
Weight - 2.14 kg.
