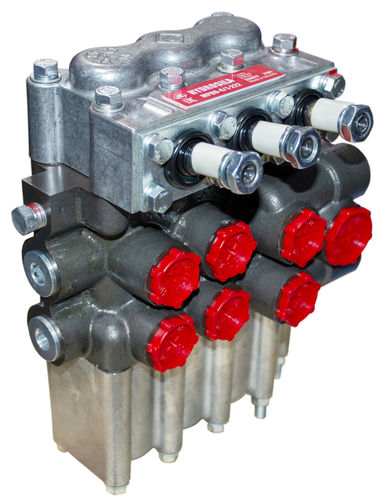

Spool hydraulic directional control valve МР80 seriesmanualproportionalmonobloc
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- manual
- Other characteristics
- proportional, monobloc, normally closed
- Operating pressure
Max.: 250 bar
(3,626 psi)Min.: 0 bar
(0 psi)- Flow rate
Max.: 100 l/min
(26 us gal/min)Min.: 80 l/min
(21 us gal/min)
Description
- Number of spools - 2 or 3 pcs
Applications:
- Agricultural tractors BELARUS, XTZ, UMZ etc.
- Pipelayers ChTZ-URALTRAK
- Forest tractors
- Dozers
Directional control valves MP80 are used in hydraulic systems with flow up to 100 l/min. Designed for distribution and flow control between pump and actuators (hydraulic cylinders and motors). They are used in hydraulic systems of agricultural tractors BELARUS, XTZ, UMZ etc., and pipelayers ChTZ-URALTRAK.
The closed center directional valve is designed for hydraulic systems with fixed displacement pump.
Equipped with a main relief valve and unloading valve.
A load check valve for proportional control of the spools.
Parallel hydraulic circuit.
Variety of 3 and 4 positions spools.
Cartridge pilot check valves is avaible.
