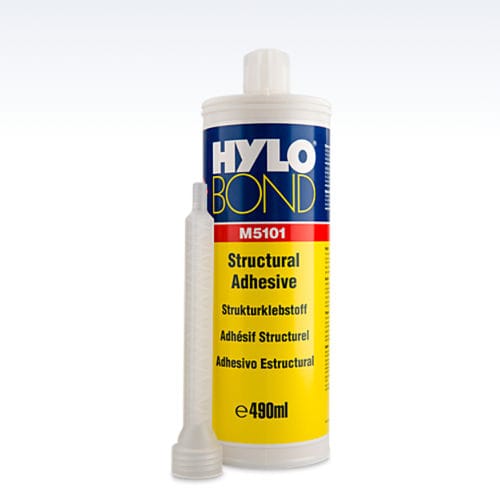

Acrylic adhesive HYLO®BOND M5101

for metaltwo-componentfor bonding

HYLO®BOND M5101 is a toughened, two component acrylic adhesive designed for bonding a wide range of substrates. This structural methacrylate adhesive has superior peel, shear and compressive properties. HYLO®BOND 5101 displays high toughness and can be used on gaps up to 15mm. it has a gel time of approximately 5 minutes. The adhesive has excellent fatigue and weathering resistance. Mix ratio 10:1, cured tensile strength 16 N/mm² INSTRUCTIONS FOR USE The surface to be bonded can have a great impact on the cured properties of Hylobond. Care must be taken to ensure that all traces of oil, grease and dirt are removed from the substrate. This can be done with a degreasing agent or solvent such as acetone. Abrading or etching the surface can greatly improve the properties of the bonded joint, if this is done a second degreasing process is highly recommended. Prior to dispensing it is important to extrude the product onto a non-bonding surface to ensure that bead coming out of the nozzle is a uniform grey colour. As soon as the bead is the correct colour the product should be used immediately to prevent curing in the nozzle. Enough adhesive should be used to fill the bond gap before the parts are joined. Once the substrates are joined sufficient pressure should be applied (e.g. by clamping) to avoid dry bonding and prevent movement in the joint. These processes must be completed before the geltime expires. The optimal application temperature is about 20°C, the geltime and cure time will be affected at temperatures much higher or lower than this.
