Chemical pump 2200 seriesduplex plungerindustrialtransfer
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Technology
- duplex plunger
- Domain
- industrial
- Applications
- transfer
Description

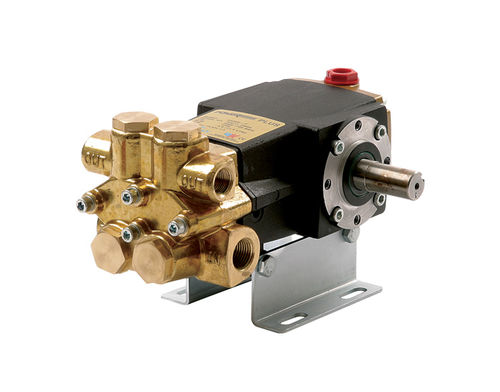

PowerLine Plus Duplex Plunger Pumps
These PowerLine Plus, duplex plunger pumps, achieve up to 3.0 gpm (11.4 lpm) and 2000 psi (138 bar). This series includes base models 2220B-P, 2221B-P, 2230B-P and 2231B-P.
Key Features
Port sizes: 1/2" inlet, 3/8" outlet
Shaft: 3/4" OD solid (for 5/8" ID hollow shaft add suffix "H" - ex part number: 2220B-HP)
Head material: Single-piece forged brass heads backed by lifetime warranty (for aluminum head - max. pressure: 1000 psi/69 bar - substitute suffix "B" with "A" - ex. part number: 2220A-P)
