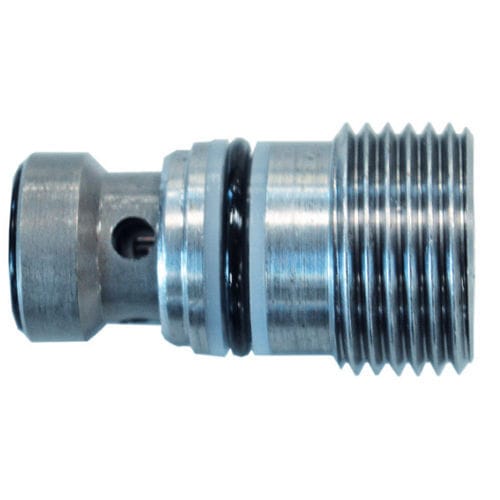

Pilot-operated check valve ERV series
ballcartridgefor oil

pilot-operated check valve
pilot-operated check valve
pilot-operated check valve
pilot-operated check valve
pilot-operated check valve
pilot-operated check valve
Add to favorites
Compare this product


Characteristics

Type
ball, cartridge
Fluid
for oil
Body
screw-in
Applications
high-pressure, hydraulic, flow-control
Material
steel
Valve plug seal material
NBR
Other characteristics
in-line, pilot-operated, pressure seal
DN

Max.: 6 mm
(0.236 in)

Min.: 3 mm
(0.118 in)

Pressure

700 bar
(10,152.6 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Flow rate

Max.: 15 l/min
(3.96 us gal/min)

Min.: 3.5 l/min
(0.92 us gal/min)

Description

Our pilot-operated check valves are leak-proof check valves with which the flow direction from B to A is open and the flow direction from A to B is normally blocked. If a hydraulic control pressure is applied to connection X, the pilot-operated check valve can be unlocked whereby the flow from A to B will also be opened. Connections A - B - X are sealed vis à vis each other in a leak-proof manner. The screw-in cartridge of the pilot-operated check valve is formed in a way that permits it to be screwed into a simple stepped bore. Technical data Pilot-operated check valves with ball cup – patented Screw-in model Permissible operating pressure: Viscosity range: 5 - 500 cSt Pressurising medium: hydraulic oil Installation position: optional
