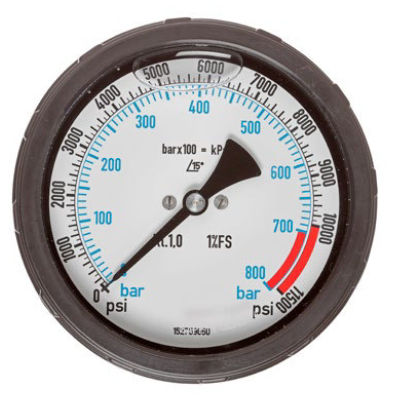

Bourdon tube pressure gauge RKG-100
absoluteanalogthreaded

Bourdon tube pressure gauge - RKG-100 - HYTORC-TECHNOLOGIES GMBH - absolute / analog / threaded
Bourdon tube pressure gauge - RKG-100 - HYTORC-TECHNOLOGIES GMBH - absolute / analog / threaded
Bourdon tube pressure gauge - RKG-100 - HYTORC-TECHNOLOGIES GMBH - absolute / analog / threaded - image - 2
Bourdon tube pressure gauge - RKG-100 - HYTORC-TECHNOLOGIES GMBH - absolute / analog / threaded - image - 3
Add to favorites
Compare this product


Characteristics

Pressure type
absolute
Display
analog
Mounting
threaded
Process connection
NPT 1/4
Material
steel, glass
Technology
Bourdon tube
Protection level
corrosion-resistant
Applications
for liquids, for hydraulic applications, calibration, test, laboratory
Other characteristics
precision, glycerin-filled, OEM, high-pressure, dial
Pressure

Min.: 0 bar
(0 psi)

Max.: 800 bar
(11,603.02 psi)

Precision

1 %

Dial diameter

100 mm
(3.9 in)

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

General Short Description Analog Bourdon tube pressure gauge with double scale (psi/bar), viewing window of laminated safety glass, housing filled with glycerine. Technical Data Precision (EN 837-1) class 1.0 Operating temperature –4 to 158°F Pressure range 0-11500 psi Nominal size 100 mm Connection ¼ NPTF ex. rear Also available calibrated on request.
