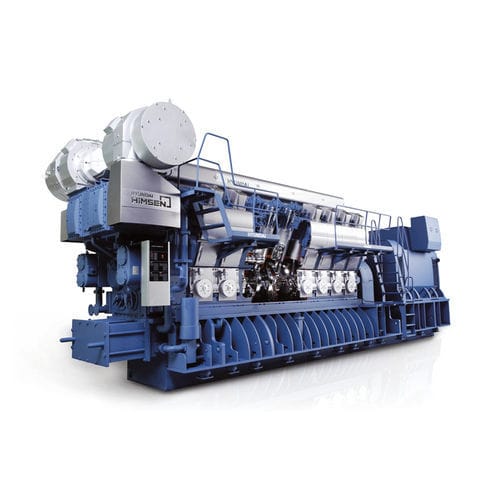

Diesel engine H32/40V seriesmulti-cylinderturbochargedfor generator sets
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- multi-cylinder
- Technology
- turbocharged
- Product applications
- for generator sets, for marine applications
- Other characteristics
- 4-stroke, Miller cycle
- Power
Max.: 10,000 kW
(13,596.212 hp)Min.: 5,760 kW
(7,831.418 hp)- Rotational speed
720 rpm, 750 rpm
(4,523.89 rad.min-1, 4,712.39 rad.min-1)- Weight
Max.: 153.9 t
(169.65 us ton)Min.: 56 t
(61.73 us ton)- Length
Max.: 13,003 mm
(511.9 in)Min.: 10,384 mm
(408.8 in)- Width
2,300 mm
(90.6 in)- Height
4,723 mm, 4,794 mm
(185.9 in, 188.7 in)
Description
Bore
320 mm
Stroke
400 mm
Specific Lubricating Oil Consumption
Lub. Oil: 0.5 g/kWh
Catalogs
Other Hyundai Heavy Industries-Marine Engine products
4-Stroke Engine
