- Hyundai Heavy Industries-Marine Engine

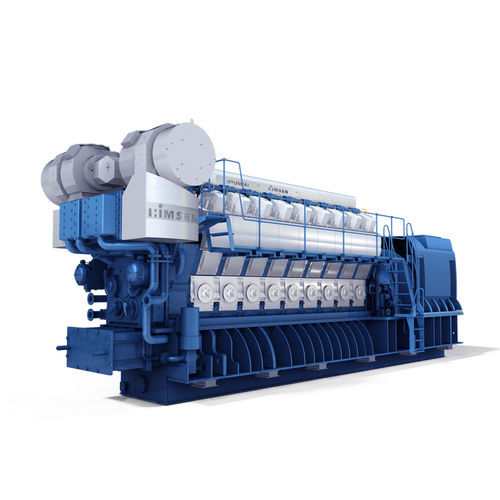

Dual-fuel engine H35DFV seriesdieselgasmulti-cylinder
Add to favorites
Compare this product
Characteristics
- Type
- diesel, gas
- Number of cylinders
- multi-cylinder
- Product applications
- for generator sets, marine
- Emissions level
- Tier 3, Tier 2
- Other characteristics
- 4-stroke, dual-fuel, Miller cycle
- Power
Min.: 5,587 kW
(7,596.203 hp)Max.: 9,600 kW
(13,052.363 hp)- Rotational speed
720 rpm, 750 rpm
(4,523.89 rad.min-1, 4,712.39 rad.min-1)- Weight
Min.: 58 t
(63.93 us ton)Max.: 155.9 t
(171.85 us ton)- Length
Min.: 10,384 mm
(408.8 in)Max.: 13,003 mm
(511.9 in)- Width
2,650 mm
(104.3 in)- Height
4,723 mm, 4,794 mm
(185.9 in, 188.7 in)
Description
Bore
350 mm
Stroke
400 mm
Specific Lubricating Oil Consumption
Lub. Oil: 0.4 g/kWh
Catalogs
HYUNDAY HiMSEN ENGINE
83 Pages
GAS & DUAL FUEL POWER PLANT
9 Pages
